I-8040W-G CR

32-channel Isolated Digital Input Module (Gray Cover) (RoHS)

제조사	ICPDAS
종류	Remote I/O
유형	Module

Data Sheet Manual Driver

Digital Input
Input Channels	32 (Sink/source)
Input Type	One Common for All Digital Inputs
On Voltage Level	+10 V ~ +30 V
Off Voltage Level	+4V max
Input Impedance	3K Ohms, 0.5W
Intra-module Isolation, Field to Logic	3750 Vrms
4KV ESD Protection	Contact for each channel
LED Display
1 LED as Power Indicator
32 LEDs as Digital Input Indicators
Power
Power Consumption	0.13A@5V = 0.65W ,+/- 5% For Hardware version 1.6
Environment
Operating Temperature	-25 ~ +75 °C
Storage Temperature	-30 ~ +85 °C
Humidity	5 ~ 95%, Non-condensing
Dimensions
30 mm x 85 mm x 114 mm (W x L x H) Detail

I-8040W/40PW/41W/41AW/42W and I-87040W/41W with DN-37-381-A

I-8040W-G CR

32-channel Isolated Digital Input Module (Gray Cover) (RoHS)

DN-37-A	I/O Connector Block with DIN-Rail Mounting and 37-pin D-sub Connector (pitch: 5.08 mm) Include: CA-3705A (37 Pin Male-Female D-sub cable 0.5 M)
DN-37-381-A	I/O Connector Block with DIN-Rail Mounting and 37-pin D-sub Connector (pitch: 3.81 mm) Include: CA- 3705A (37 Pin Male-Female D-sub cable 0.5 M)
CA-3705A	Male-Female D-sub cable 0.5 M
CA-3710A	Male-Female D-sub cable 1M
CA-3715A	Male-Female D-sub cable 1.5 M

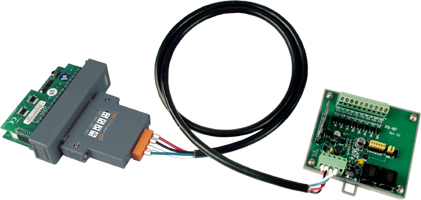

MD-11	Input type MagicWire for I-8041/I-87041
MD-12	Output type MagicWire for I-8040/I-87040
FR-Series modules

Power Supply	24 VDC power supply
Relay Module	External relay modules for I-7000 DO module
Application Books	Application books designed with our products
Data Logger Software	User friendly data logger software (free)

I-8040 Pin Assignment

Terminal Number	Pin Name	Terminal Number	Pin Name
19	COM
18	NC	37	COM
17	NC	36	NC
16	DI_15	35	DI_31
15	DI_14	34	DI_30
14	DI_13	33	DI_29
13	DI_12	32	DI_28
12	DI_11	31	DI_27
11	DI_10	30	DI_26
10	DI_9	29	DI_25
9	DI_8	28	DI_24
8	DI_7	27	DI_23
7	DI_6	26	DI_22
6	DI_5	25	DI_21
5	DI_4	24	DI_20
4	DI_3	23	DI_19
3	DI_2	22	DI_18
2	DI_1	21	DI_17
1	DI_0	20	DI_16

I-8040 Block Diagram

I-8040 Wire Connection
